Channel Marker
Click to download (v.Beta1)This tool is in Beta testing and may have bugs or unexpected behavior. To report bugs or provide feedback, please reach out at ElijahFrankle626@gmail.com.

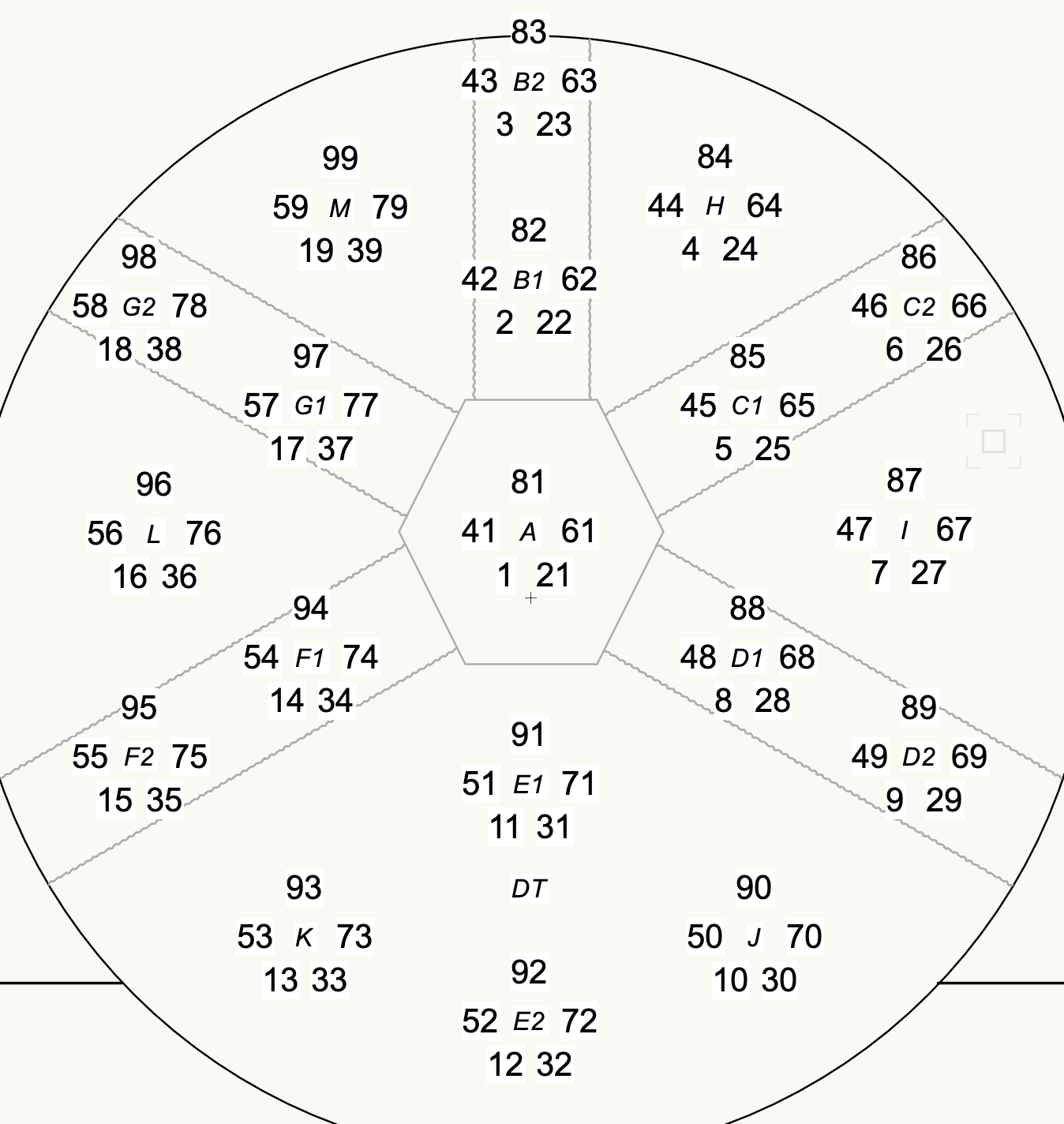

Channel Marker speeds up making your magic sheet by creating a custom object generated from fixture and focus point data. Not only is it faster than drawing by hand, but can pull the most recent data to make sure information is up to date.

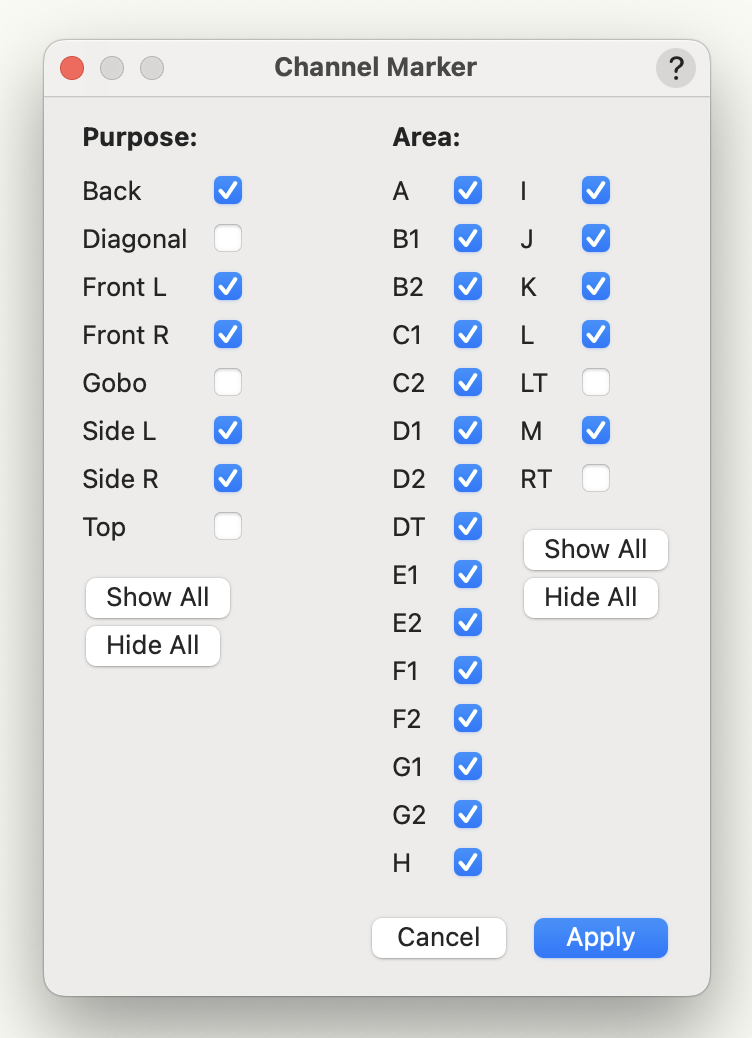

To get started, make sure all lighting fixtures have a channel number, a purpose, and a focus which corresponds to a focus points object. Select the tool from the tool set, click on your document, then click again to the right to set the orientation. A menu will appearing allowing you to select which focus areas and purposes you would like to include on the magic sheet.
Once the object has been created, it has a number of options accessible when selected in the object info palette:
- Update Data: pull all fixture info again to apply any changes made after creating the object.
- Open Editor: reopen the editor to modify purpose and area selections.
- Offset Distance: how far channels are drawn from their focus point.
- Channel Text Size: how large the channel number is drawn.
- Focus Text Size: how large the focus name is drawn.
- Show Focus Name: toggle showing the focus names.
- Color Channels: toggle drawing each purpose in a different color.
- Fill Text: toggle a white background behind all text to help with readability.
- Lock Location to Origin: toggle if the object is drawn over the actual focus point locations or can be moved freely.
Fixture Info
Click to download (v.Beta2)This tool is in Beta testing and may have bugs or unexpected behavior. To report bugs or provide feedback, please reach out at ElijahFrankle626@gmail.com.
Fixture Info gives a streamline and customizable alternative to the object info palette to help with easily editing fixtures.

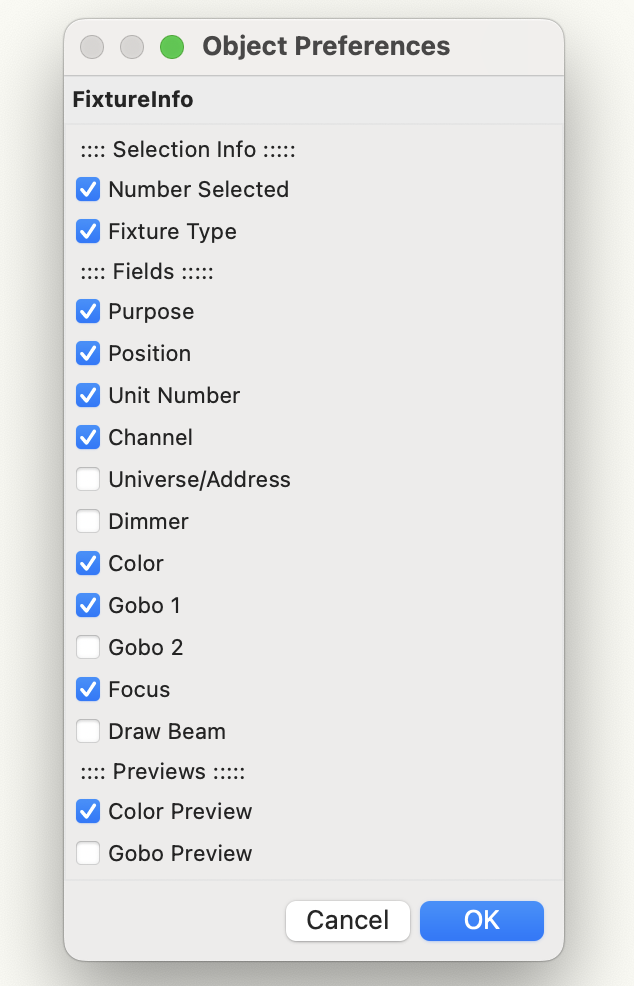

To get started, select the tool from the tool set and double click on its icon. Here you can toggle what parameters and information is shown in the menu.

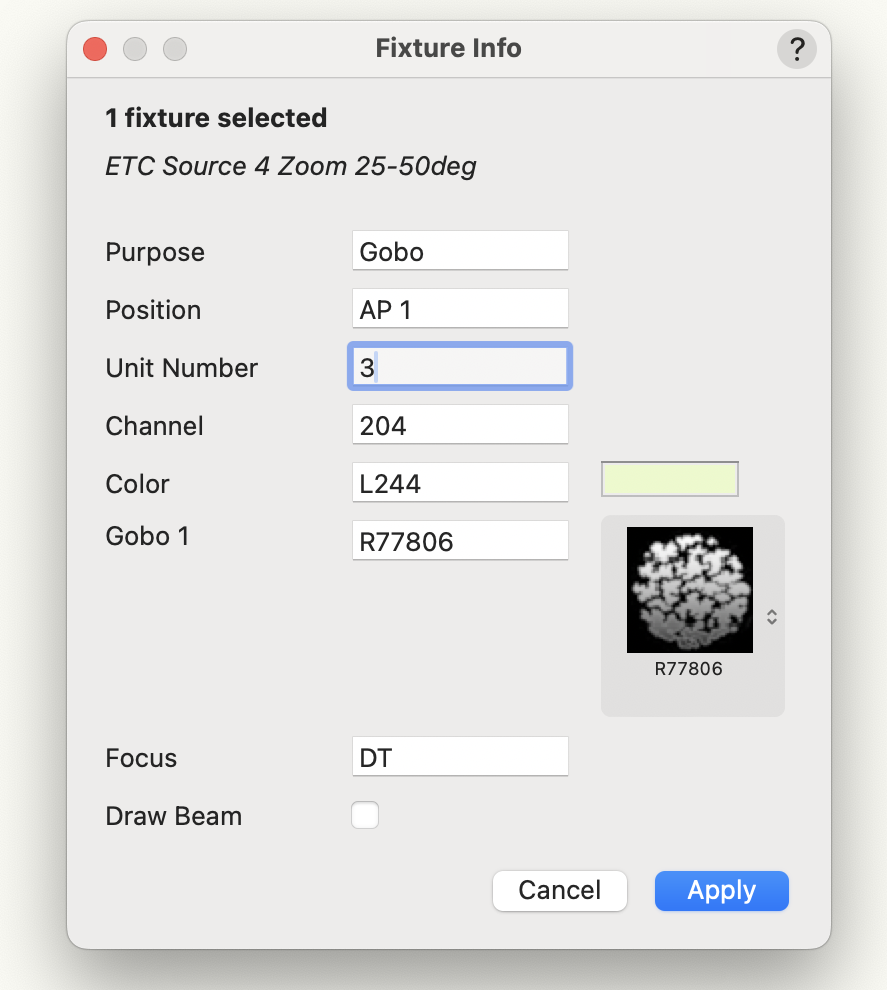

Once you are ready to edit, with the tool selected, click on a lighting fixture. If you would like to edit multiple fixtures, you can hold shift to add to your selection before clicking normally to edit. In this menu you can edit your fixture(s) just like you would in the object info palette. Click "Apply" to save your changes or "Cancel" to discard them.
Color Codes
Click to download (v.Beta1)This tool is in Beta testing and may have bugs or unexpected behavior. To report bugs or provide feedback, please reach out at ElijahFrankle626@gmail.com.

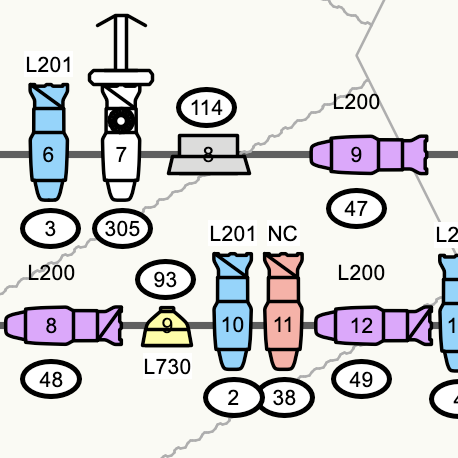

Color Codes gives a quick way for you to color code your lighting fixtures, allowing you to easily assign colors for specific groups based on your choice of parameter.
To get started, allow your document to set fixture color by going to "File">"Document Settings">"Spotlight Preferences...", selecting "Classes and Color" from the left column, and toggling on "Modify lighting device color". Also, under "Lighting Device Color Set by:" select "Object attributes".

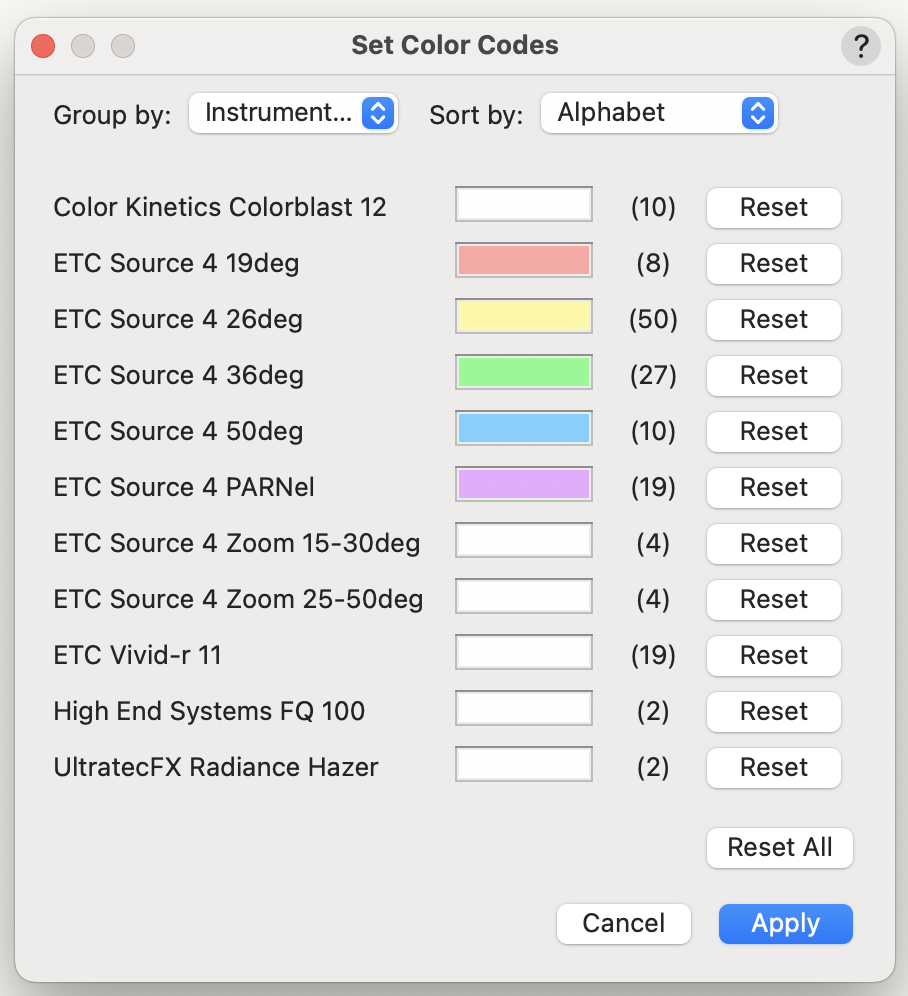

Now, by right-clicking anywhere on your document, choose the Color Codes command. If you placed the tool in a different menu when installing, select it from there. In the editor menu, you can choose what parameter you are grouping by, how the categories are sorted, and assign a color to each of them. Click the "Reset" button to reset a color back to white, or the "Reset All" button to return all to white. To save your changes click "Apply", or to discard them click "Cancel".
Select By Something
[Coming soon]
Custom Selection
[Coming soon]
Fill Fields
[Coming soon]
How To Install a New Tool:
- Download the file from its info page. Tools will be a ".vso", ".vsm", or ".vst" file.
- In Vectorworks, find your user folder by clicking "Tools">"Options">"Vectorworks Preferences...", then selecting "User Folders" on the left.
- Open this folder, and from there open the folder for the version of Vectorworks you are using (ex: 2025), then open the "Plug-ins" folder.
- Drag or copy and paste the downloaded file into this folder. You may choose create a sub-folder of downloaded plug-ins to keep things organized.
- Close and re-open your Vectorworks application.
- In Vectorworks, go to "Tools">"Workspaces">"Workspaces..."
- Select the workspace you'd like to add the tool to and click "Edit..." You may choose to create a new workspace or edit an exiting one.
- Select the "Tools" tab at the top.
- In the left column, find the "EF Tools" container and expand it. You should see your new tool in this expanded list.
- In the right column, expand the "Tool Sets" container, then expand the tool set you'd like to place the new tool in.
- Drag the tool from the left column into the right column inside your chosen tool set.
- Click "Ok", then wait about five seconds for the changes to update.
- Your new tool should now appear in that tool set and be selectable just like any other tool.
- Select the "Menu" tab at the top.
- In the left column, find the "EF Tools" container and expand it. You should see your new tool in this expanded list.
- In the right column, expand the "Document Context" container. (This makes the tool useable by right clicking and selecting it. You may choose to place the tool in a different container corresponding to the menus at the top of the screen.)
- Drag the tool from the left column into the right column inside the open container.
- Click "Ok", then wait about five seconds for the changes to update.
- Your new tool should appear in a list when you right click your document, or in an upper menu if you chose a different container.
IF the tool is a ".vso" or ".vst" file...
IF the tool is a ".vsm" file...
